Jesani Appliance Drainage Channel

Suitable flooring:
Tile · Vinyl · Carpet · Existing Hardwood · Exposed Concrete

The Jesani Appliance Drainage Channel is custom designed to capture and drain emergency water discharge from serviced appliances, including dishwashers, washing machines, and plumbed refrigerators.

Designed to contain overflows at the source, the system provides passive protection against one of the most common causes of water damage and insurance claims — preventing water from spreading into floor structures and adjoining spaces.

Appliance failures are unpredictable and often outside the user’s control. What can be controlled is preparedness. Installing a Jesani Appliance Channel is a simple, low-cost risk mitigation measure compared to the time, stress, and financial impact of an insurance claim and remediation works.

The system shares the same emergency overflow classification as Jesani Door Channel products and can be custom configured to meet individual appliance layouts and discharge requirements.

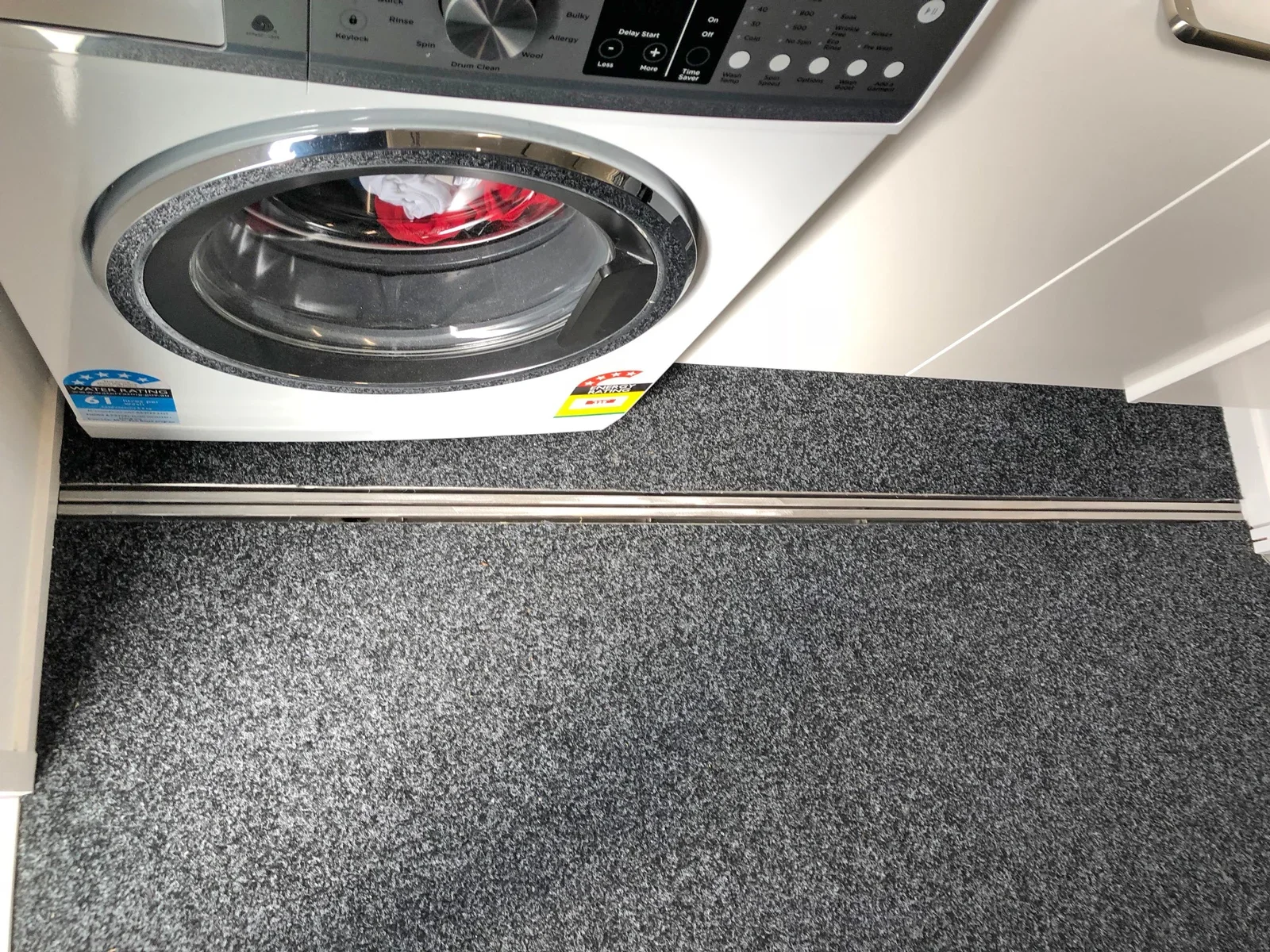

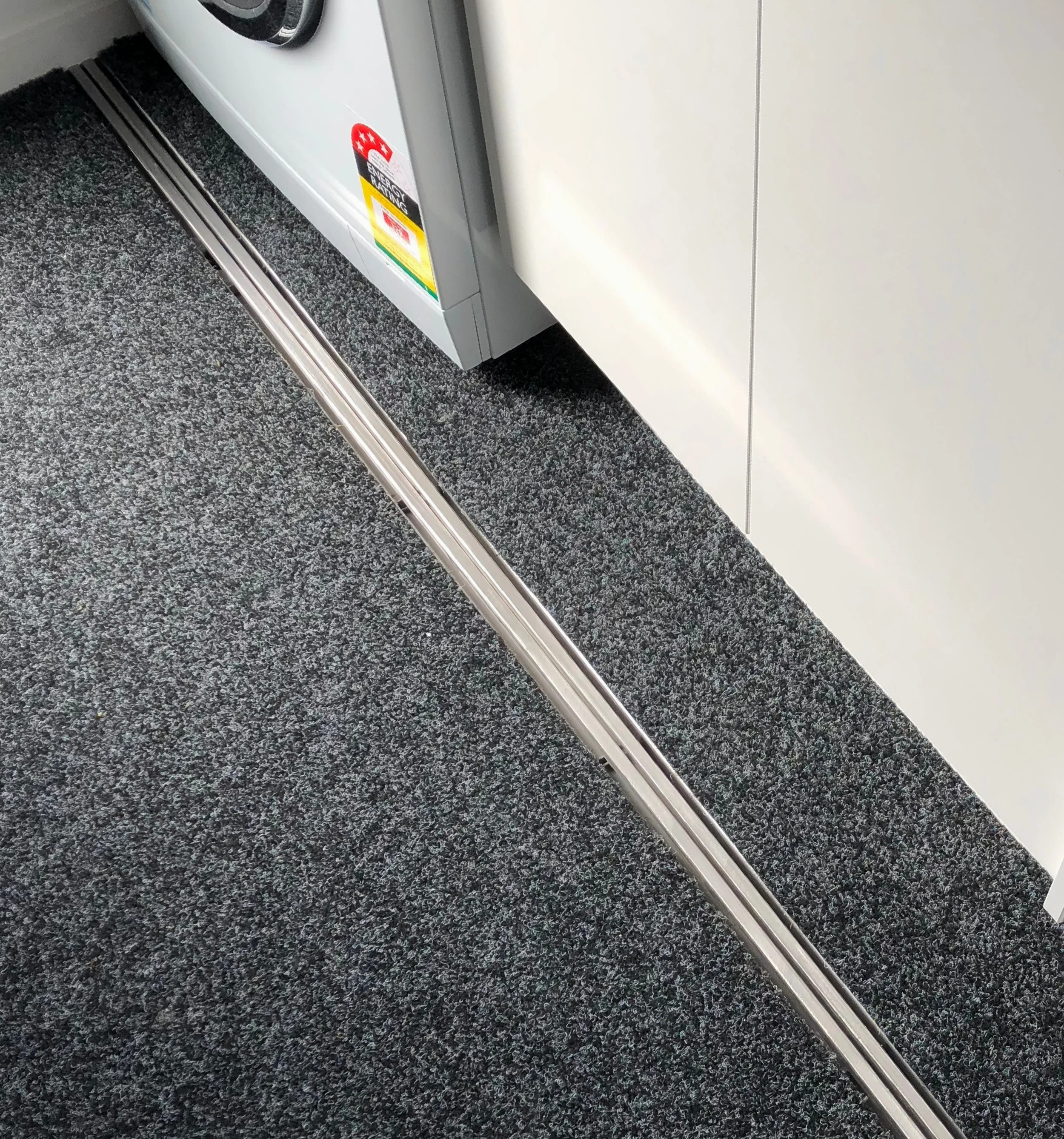

See project photos for installed examples.

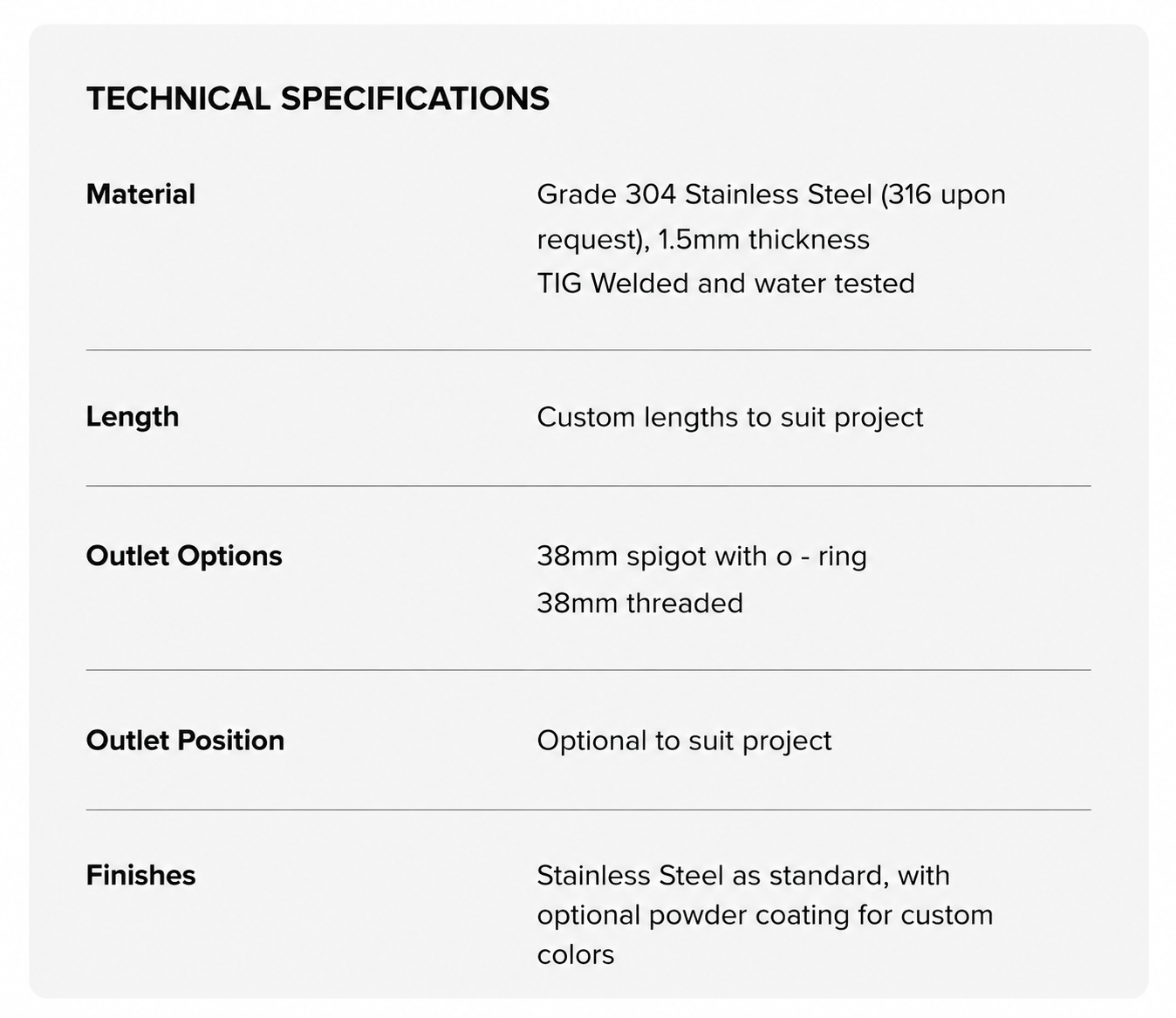

Technical Specifications

Material

• Grade 304 stainless steel (316 optional)

• 1.5 mm thickness

• TIG welded and water tested

Lengths

• Custom lengths to suit project

Outlet Options

• 38 mm spigot with O-ring

• 38 mm threaded

Outlet Position

• Centred or to suit the project

Finishes

• Stainless steel as standard

• Optional powder coating or PVD for custom colours
