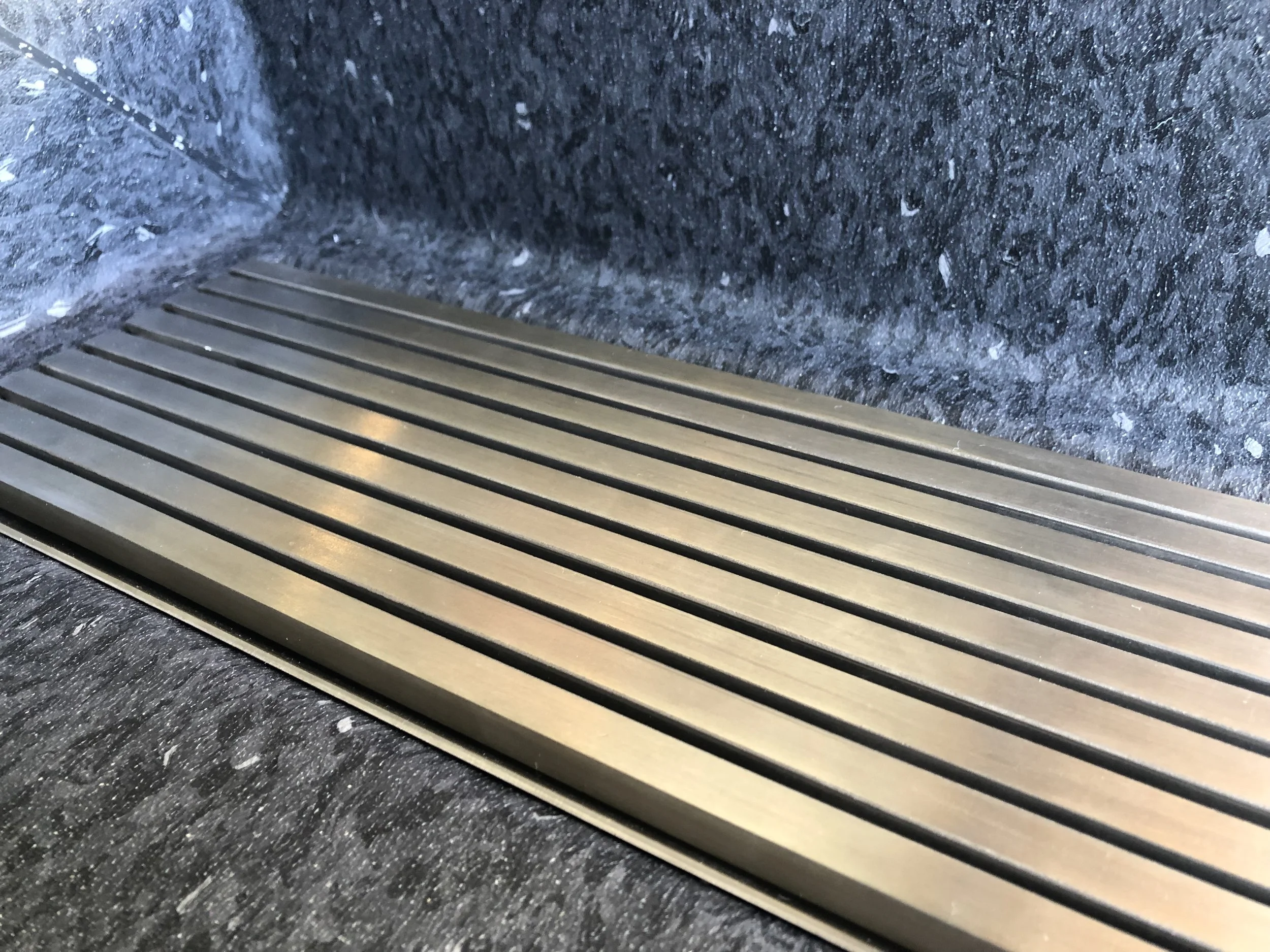

Shower Channel – Vinyl Clamping System

The vinyl clamping system for this Shower Channel is imperative due to its finished location in an open wetroom design. The channel is sitting in an open shower set up, whereby the vinyl termination around the trough edge is vital to ensure zero water ingress and to ensure the stability of the vinyl flooring composition.

These open shower wetrooms are generally designed with wheelchair access in mind. With the increased mobility traffic, the clamping system ensures the vinyl will not be compromised from continuous movement friction and the shower channel ensures no trip hazards.

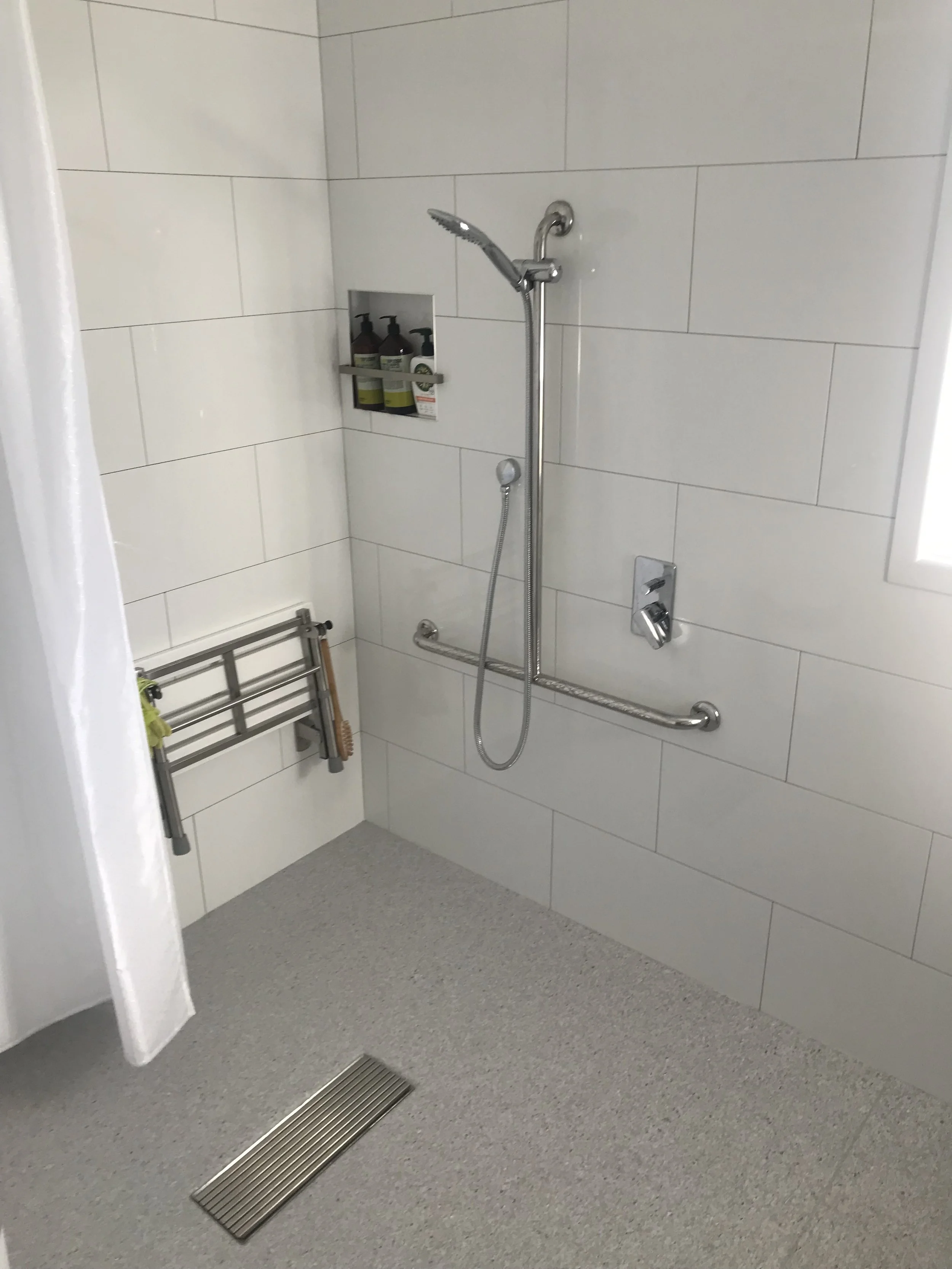

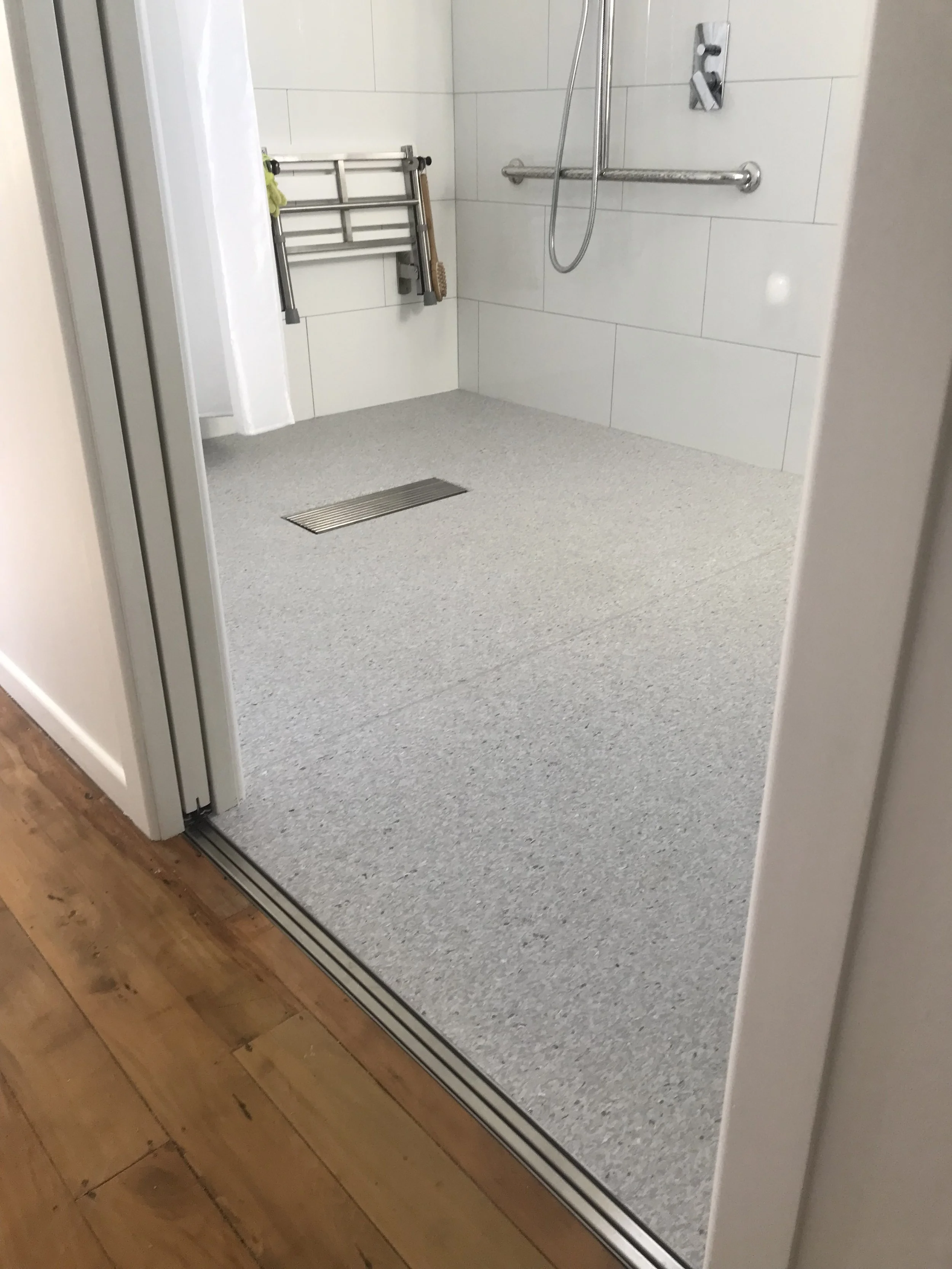

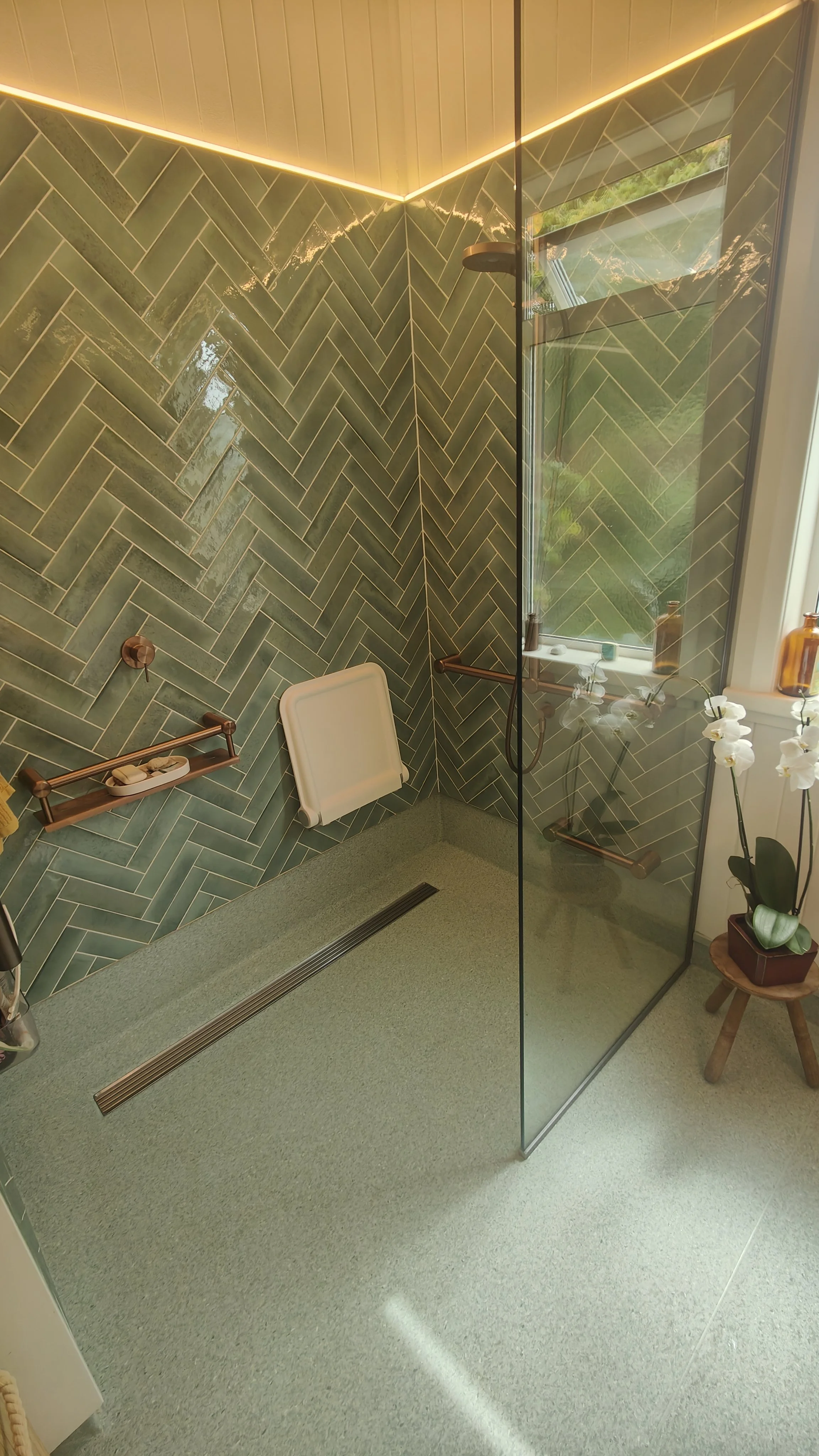

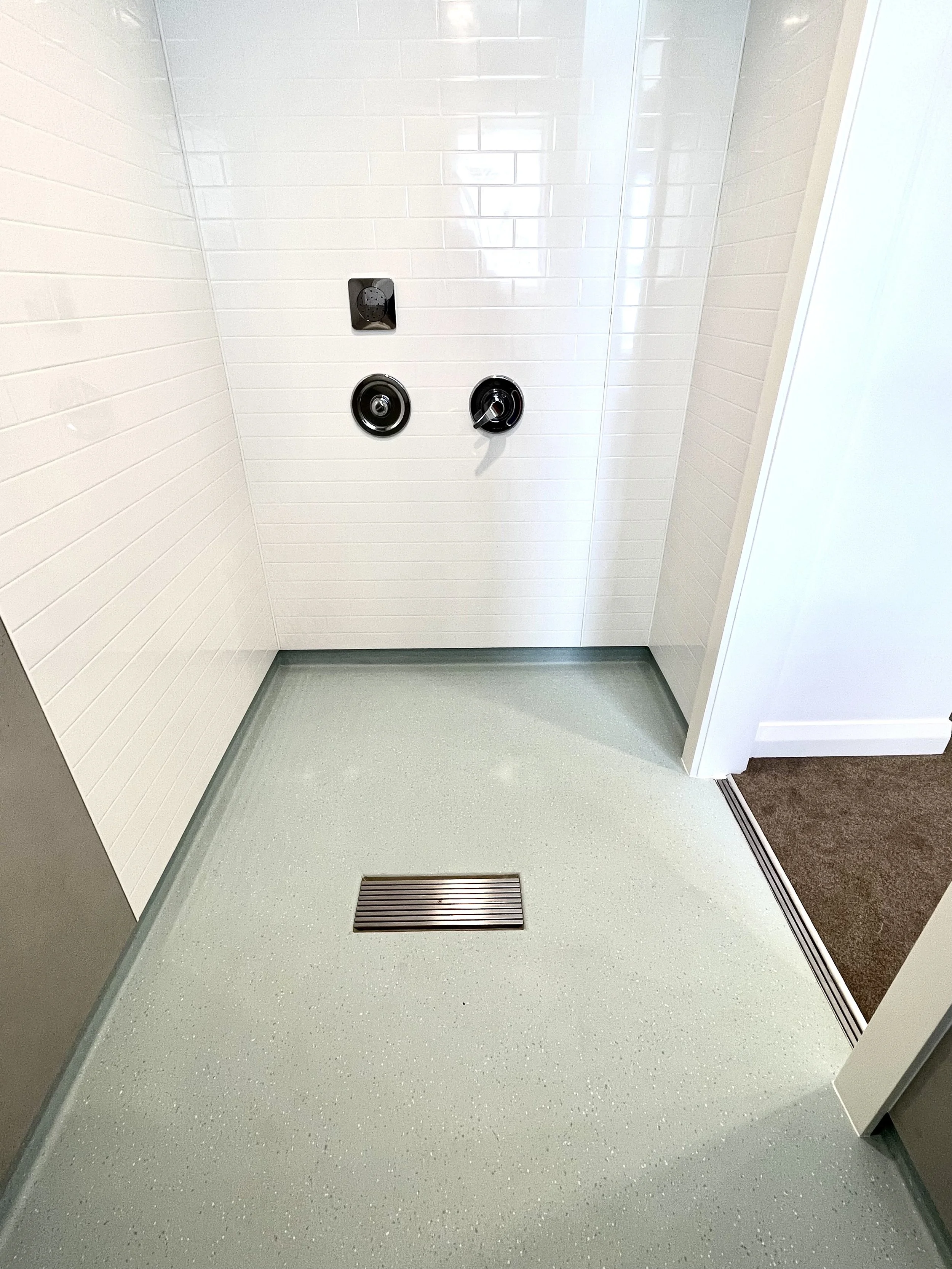

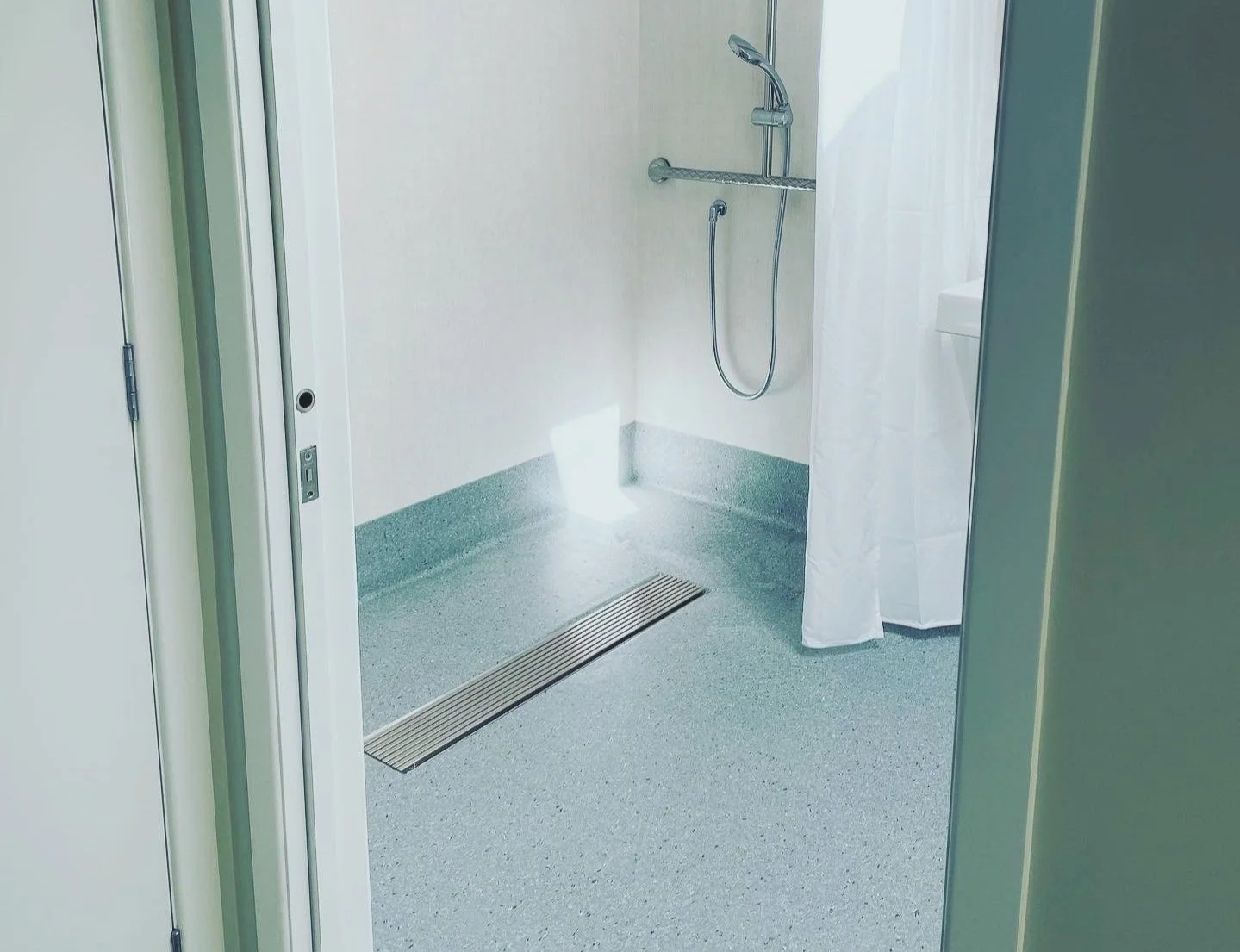

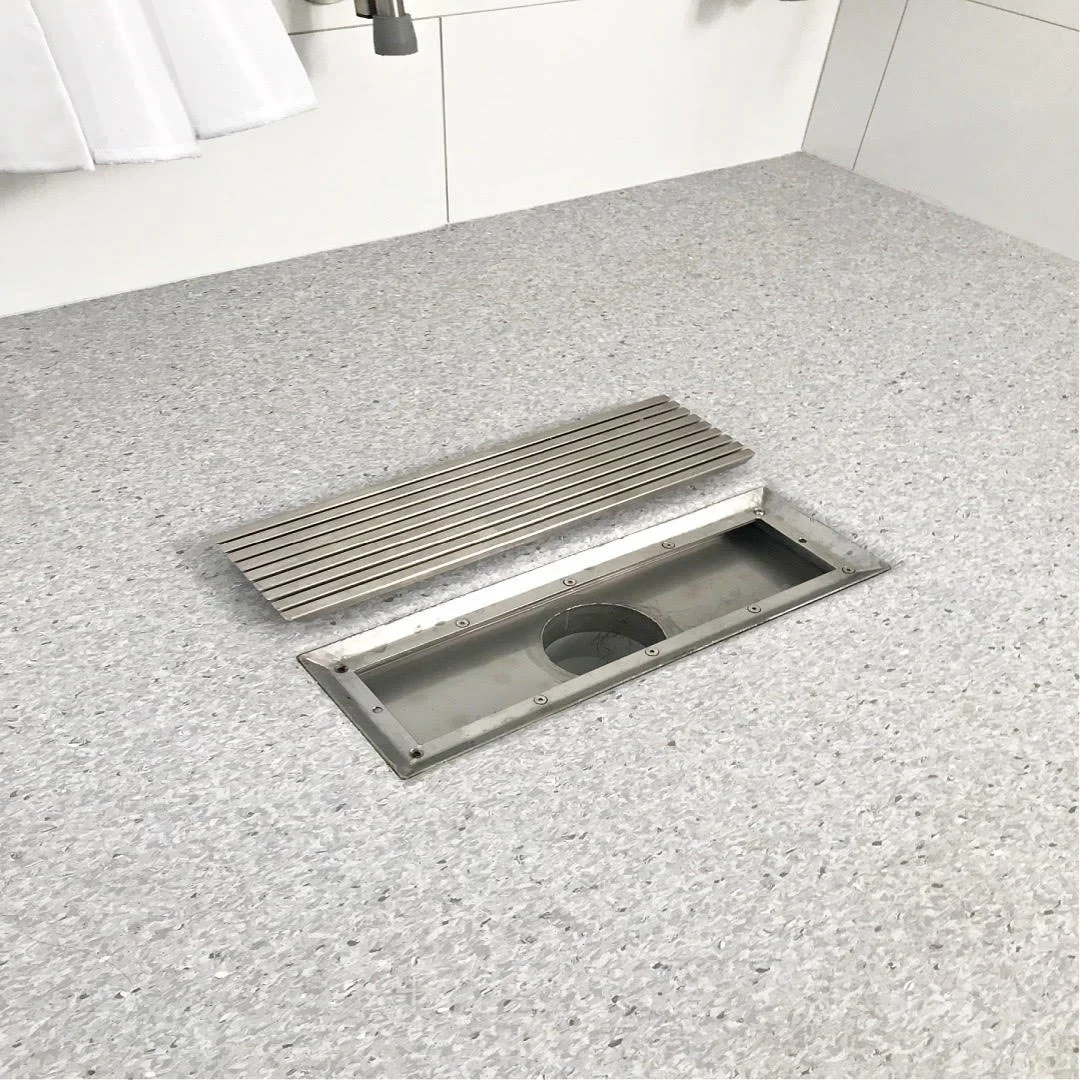

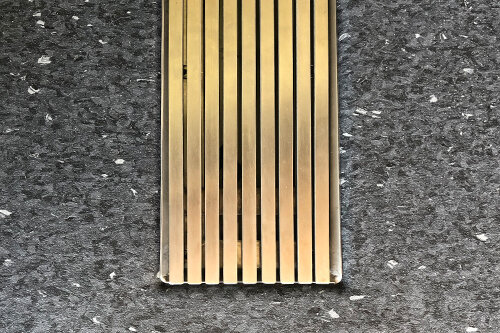

See photos of some finished projects

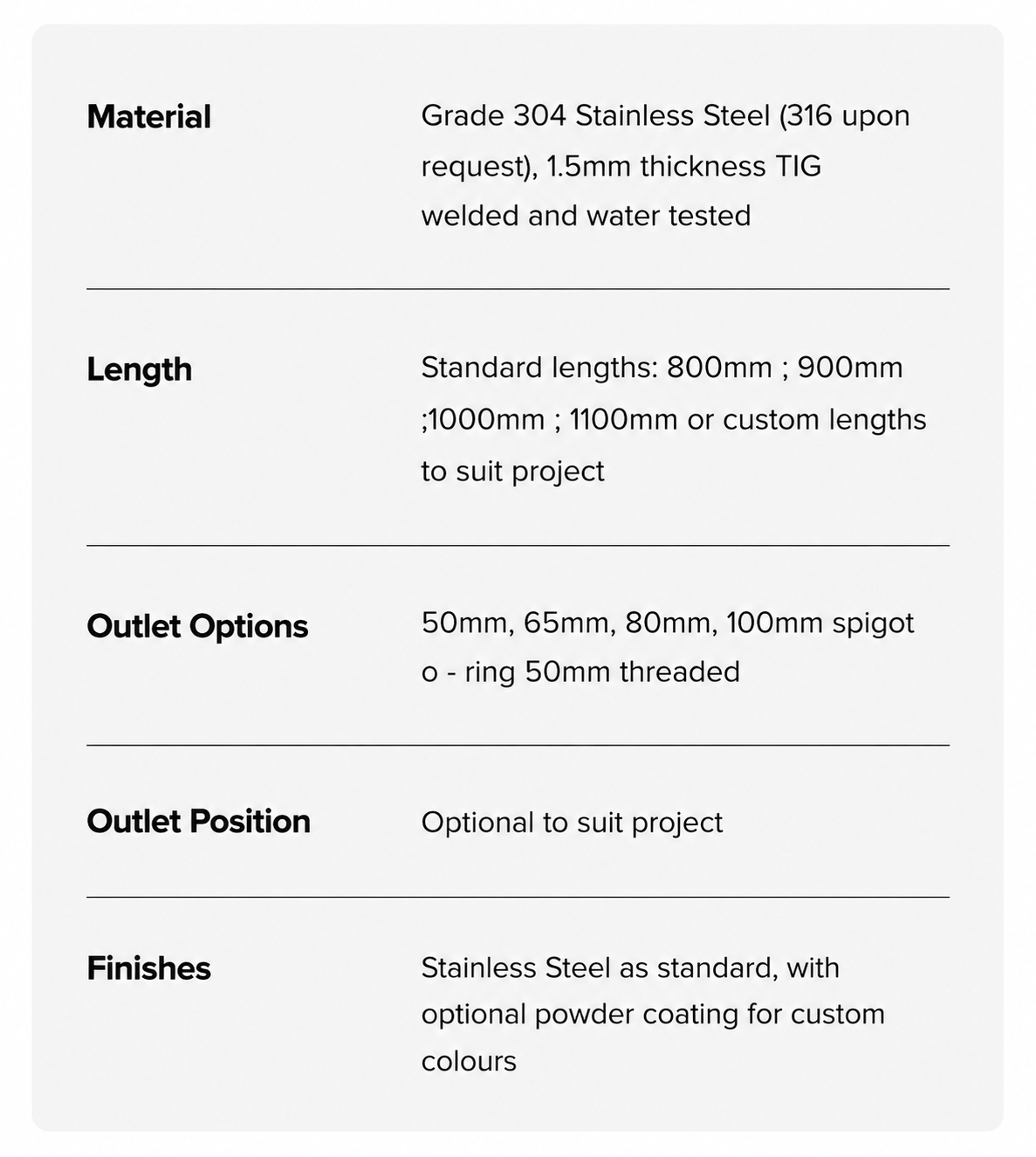

Material:
Grade 304 Stainless Steel (316 upon request),
1.5mm thickness
TIG Welded and water tested

Length:

Standard lengths: 800mm ; 900mm ; 1000mm ; 1100mm or

Custom lengths to suit project

Outlet options:

50mm, 65mm, 80mm, 100mm threaded

Outlet position:

Optional to suit project

Finishes:

Stainless Steel as standard, with optional powder coating for custom colors
